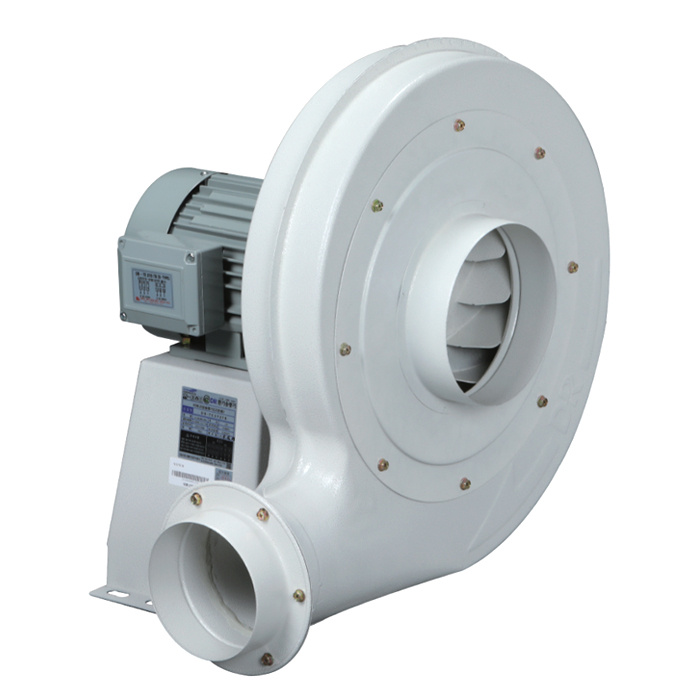

Turbo Blower

Products

Small Sirocco Fan	Small In-line Fan	High pressure ventilation fan	Smart Fan
High Static Pressure Sirocco Fan	Duct Type In-line Fan	Shutter	Ceiling Fan
Large Sirocco Fan	Sirocco In-line Fan	Inhalation High Pressure Ventilating Fan	Air Curtain
Filter Box	Turbo Blower	Portable Fan	Energy Recovery Ventilator
Double Suction Straight Sirocco Fan	Roof Fan	High static pressure ventilator	Preminum Motor
		Middle Pressure Ventilation Fan

Feature

Minimized noise and vibration through enhanced durability by application of fan and casing with optimal design
High efficiency in operational cost with suitability for high wind pressure
Maximized heat release of motor by application of motor casing in aluminum alloy
General type of motors in driving part is in dual use at 50/60Hz of frequency value, and three-phase motors are available at voltage of 200~240/380~440 depending on connectors

General
– SPCC casing (Steel Plate Cold Commercial)
– SPCC impeller (Steel Plate Cold Commercial)
– IP44 motor
– Class B insulation

High efficiency
– SPCC casing (Steel Plate Cold Commercial)
– SPCC impeller (Steel Plate Cold Commercial)
– IP54 motor
– Class F insulation

Use	High-pressure blowers in industrial use, air transport devices, incinerators, agro-livestock facilities, sludge collecting devices, etc Dust collectors, intake and exhaust system, and drying system
